Tuotenumero
SPO65E-LWB/VAS6355A

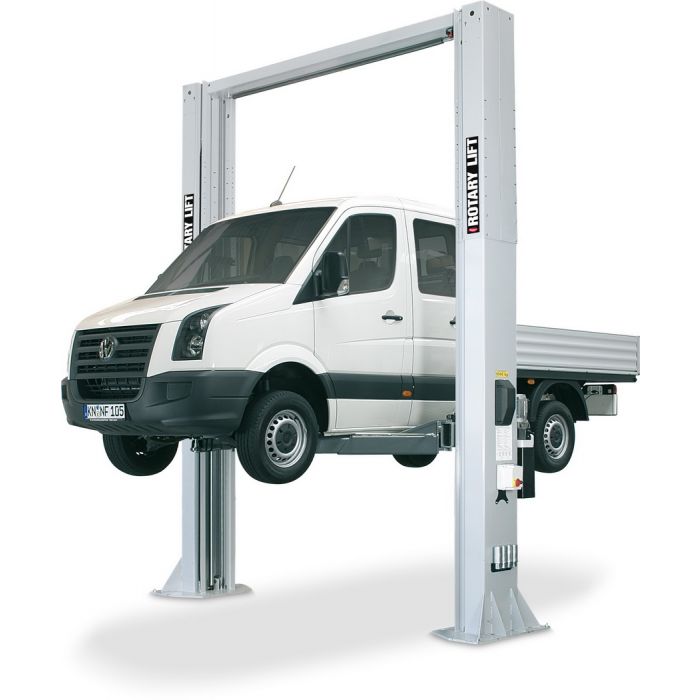

Extremely robust electro-hydraulic 2-pillar hoist with electronic locks and double steering. The lifting columns of the symmetrical SPO65E lift use Rotary Lift's patented double-S profile, which makes the lift extremely stable and takes up very little space. The patented double-S profile also allows for larger-than-normal sliding surfaces on the lift carriage, which reduces wear and significantly extends the life of the lift.
The SPO65E's sturdy lifting arms are ideal for lifting heavier vehicles. The hoisting leveling cables always keep the lifting level and are not subjected to a load, which makes the cables very long-lasting. Maintenance-free hydraulic cylinders, a mechanical locking system and an efficient hydraulic unit with thermal protection ensure low maintenance and safe operation.
Rotary Lift 2-pillar lifts are available in several different versions and with accessories they can be tailored to suit all applications.
- The compensating cables guarantee an even lift and are not subjected to a load
- All functions (lifting, lowering and lowering) are easily accessible from a single operating unit.
- Rotary Lift's patented double-S profile on the lifting column makes the lift extremely stable and requires very little space. In addition, the profile allows for a larger-than-normal sliding contact surface, which significantly reduces wear.
- The lift is equipped with a double control (on both pillars) and a 230V plug for better working ergonomics
- The electronically controlled locks on the E-model ensure safe operation and are automatically released during the calculation function
- The floor-free design makes the lift very easy to drive and reduces the risk of tripping
- Automatic lift cutout at upper limit protects taller vehicles from damage caused by lifting too high
- The energy-efficient hydraulic unit is securely located at the top of the column, where it is less exposed to external risks
Technical information:
- | Lifting capacity | 6500 | kg |
A. | Lifting height | 2005 | mm |
B. | Overall height, adjustable every | 4570-5028 | mm |
- | Required ceiling height | 4700-5150 | mm |
C. | Overall width | 3937 | mm |
D. | Throughput width | 2687 | mm |
E. | Upper cut-off / maximum lift height (highest point of the vehicle) | 4546-5004 | mm |
F. | Length of lifting arm at the front min | 935 | mm |
G. | Lift arm length at the front max | 1901 | mm |
H. | Length of lifting arm at the rear min | 935 | mm |
I. | Length of the lifting arm at the rear max | 1901 | mm |
J. | Lifting height min | 115 | mm |
K. | Lifting platform height max | 175 | mm |
M. | Free spacing of columns | 3058 | mm |
- | Engine power | 3 | kW |
- | Electrical connection, drive unit | 3/400/50 | Ph/V/Hz |
- | Electrical connection, socket | 1/230/50 | Ph/V/Hz |
- | Interlock operation | Electronic | |
- | Lifting time | 60 | s |
Accessories:
- Lifting adapter set for MB G-Class, order no. 120608
- Adjustable lifting platform 4 pcs., Order no. FJ6217MB
- Lift adapter set Sprinter / Crafter (2 pcs.) Rear, til.no. FJ6215MB + 2x115684 (VAS version: VAS 6605/1)
- Non-slip for adjustable 120 mm lifting base (2 pcs.), Order no. FS6353-1
- Lifting adapter set Sprinter / Crafter (2 pcs.) Front, order no. FJ6216MB (VAS Version: VAS 6605/2)
Kapasiteetti | 6 500,00 kg |
---|---|
Nostokorkeus | 2 005,00 mm |
Nostintyyppi | 2-pilarinostin |
Nostotapa | Helmasta nostava |
Nostettava kalusto | Kevyt, < 7000 kg |
